Table 1. Key for General Identification
Step 1.0 Examine the side of the core for the presence of strongly tilted
layering, "rolled" bedding or intense fracturing accompanied by slickensides.
-
1.1 If the core is-
-
Layered and the layers are inclined at angles of 60 degrees or less from
the side of the core
(e.g. 89L) or the layering
is rolled or folded (e.g. 88R)
or the rock is intensely fractured, turn to the
Deformed Rocks section of the book.
-
1.2 If the core-
-
does not show any of the features described under 1.1, proceed to Step 2.0.
Step 2.0 Examine the side of the core to determine the degree of grittiness
or the grain size of the particles.
-
2.1 If the core is-
-

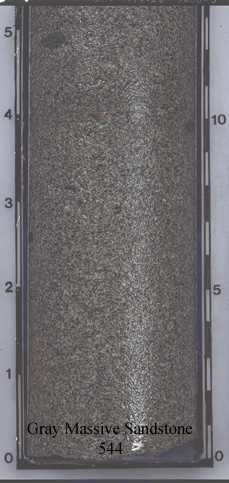

sandy or very gritty (e.g. 18R)
or is sandy with pebbles of rock or coal
(e.g. 41R), proceed to the
Sandstones, Pebbly Sandstones and
Conglomerates section of this book.
-
2.2 If it is-
-
composed of mixtures of sandstone and shale with shale streaks making up
at least 20% of the rock (e.g. 50L
and 50R), or entirely of
fine grained materials (e.g. 58L),
proceed to Step 3.0 of this table.
Step 3.0 Determine the hardness of the core by scratching it with your
fingernail and by impact.
-
3.1 If the core is-
-
easily scratched with the fingernail and breaks readily upon impact (like
shale, sandy shale or fireclay), proceed to Step 4.0 of this table.
-
3.2 If it is-
-
scratched only with difficulty or is hard, brittle and resists impact, proceed
to the Ironstones, Limestones,
and Flint Clays section of this book.
Step 4.0 Determine the degree of grittiness of the core by rubbing it
lightly with the forefinger or thumb.
-
4.1 If the core is-
-
distinctly gritty or mixed gritty and smooth, proceed to the
Sandy Shales (Siltstones) and Sandy
Fireclays section of this book.
-
4.2 If it is-
-
smooth or only slightly gritty, proceed to the
Shales and Fireclays section of this
book.
