The Sloans Valley Member (Paragon Formation) of Kentucky: Echinodermata

by Don R. Chesnut (chesnut<at>uky.edu)
ęDRC 2014

Phylum Echinodermata Klein, 1734
[The analysis by Chesnut and Ettensohn, 1988 is used for this phylum.]

Class Blastoidea Say, 1825

Order Spiraculata Jaeckel, 1918

Family Pentremitidae d'Orbigny, 1851

Genus Pentremites Say, 1820


Pentremites tulipaeformis Hambach, 1903

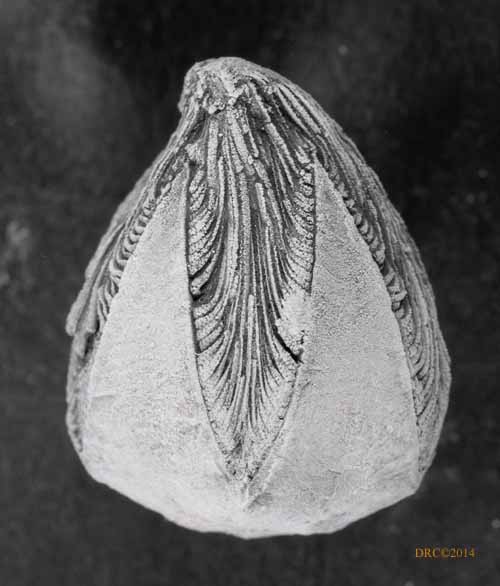

Click to see img145c.jpg Click to see img146c.jpg

Pentremites elegans Lyon, 1860

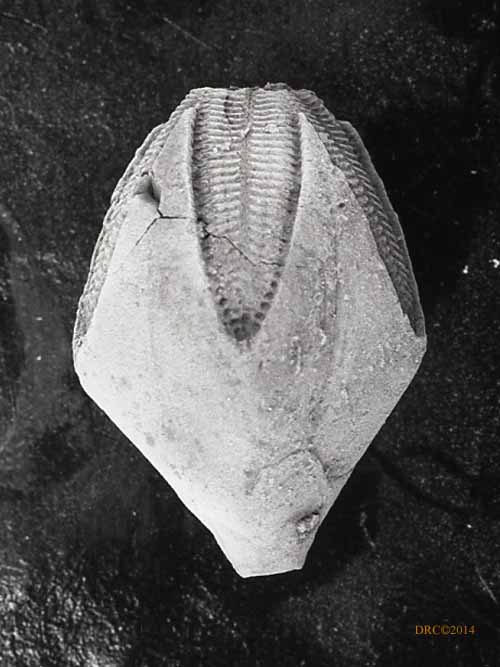

Click to see img144c.jpg Click to see img147c.jpg Click to see img148c.jpg Click to see img149c.jpg

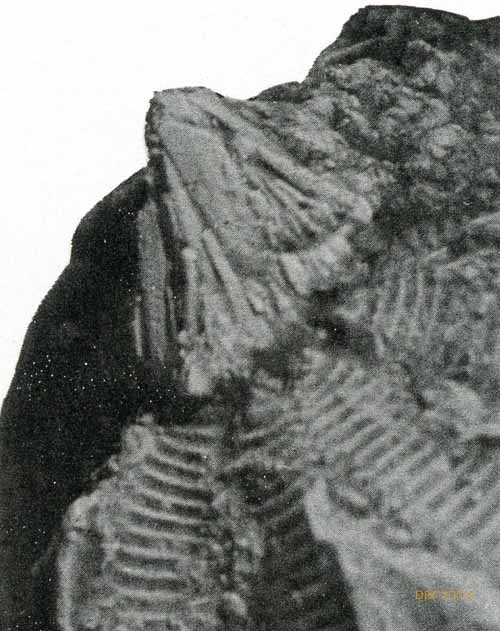

Click to see img233Ac.jpg Click to see img232Ac.jpg
Click to see img234Ac.jpg

Pentremites robustus Lyon, 1860
Click to see img143c.jpg Click to see img152c.jpg Click to see img153c.jpg

Pentremites pyriformis Say, 1825
Click to see img150c.jpg Click to see img151c.jpg


Class Edrioasteroidea Billings, 1858

Order Isorophida Bell, 1976

Suborder Isorophina Bell, 1976

Family Agelacrinitidae Clarke, 1901

Genus Lepidodiscus Meek and Worthen, 1868


Lepidodiscus laudoni (Bassler, 1936)
Click to see img154c.jpg Click to see img156c.jpg Click to see img160c.jpg Click to see img162c.jpg
Click to see img161c.jpg Click to see img166c.jpg Click to see img158c.jpg Click to see img165c.jpg
Click to see img163c.jpg Click to see img167c.jpg Click to see img169c.jpg Click to see img170c.jpg
Click to see img168c.jpg

Genus Ulrichidiscus Bassler, 1935

Ulrichidiscus pulaskiensis (Miller and Gurley, 1894)
Click to see img235Ac.jpg Click to see img236Ac.jpg


Class Crinoidea Miller, 1821

Subclass Camerata Wachsmuth and Springer, 1885

Order Monobathrida Moore and Laudon, 1943

Suborder Compsocrinina Ubaghs, 1978

Superfamily Hexacrinitacea Wachsmuth and Springer, 1885

Family Dichocrinidae Miller, 1889

Subfamily Talarocrininae Ubaghs, 1953

Genus Pterotocrinus Lyon and Casseday, 1859


Pterotocrinus acutus Wetherby, 1879
[This species includes many former species that were widely recognized.]

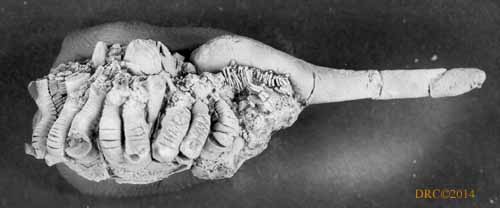

Click to see img095c.jpg Click to see img096c.jpg Click to see img097c.jpg Click to see img098c.jpg

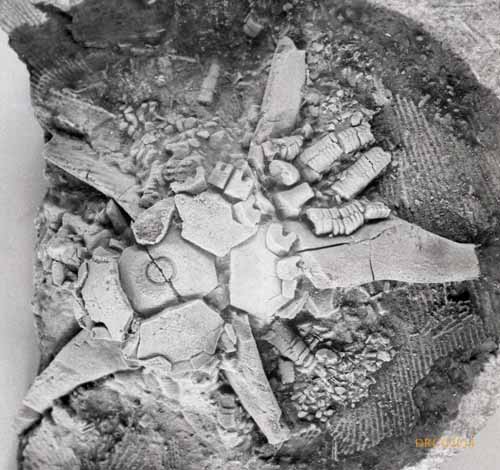

Click to see img099c.jpg Click to see img100c.jpg Click to see img104c.jpg Click to see img106c.jpg

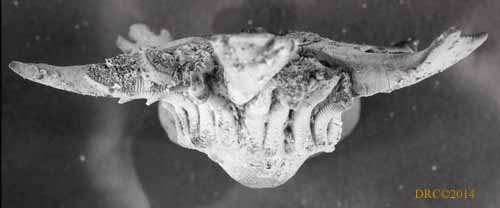

Click to see img101c.jpg Click to see img103c.jpg Click to see img102c.jpg Click to see img105c.jpg

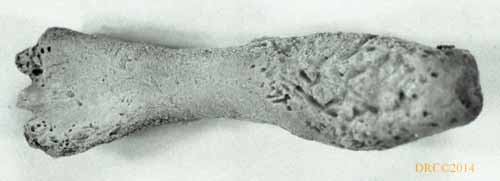

Click to see img107c.jpg Click to see img108c.jpg Click to see img111c.jpg Click to see img112c.jpg

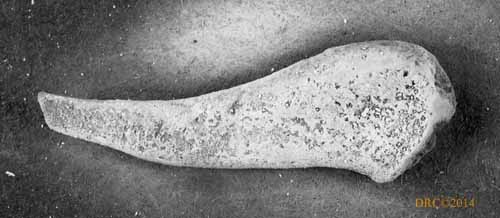

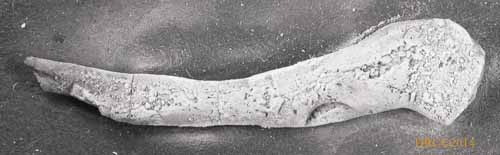

Click to see img117c.jpg Click to see img116c.jpg Click to see img115c.jpg Click to see img113c.jpg

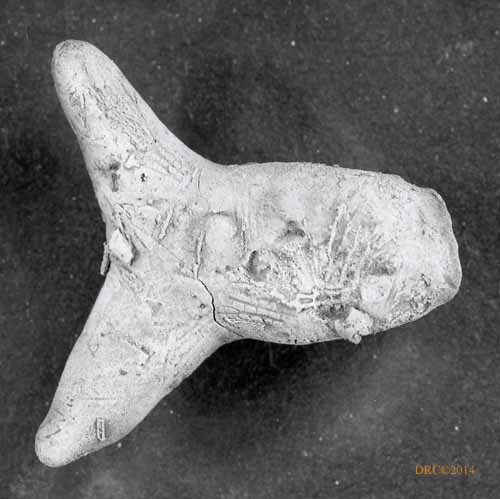

Click to see img114c.jpg Click to see img109c.jpg Click to see img110c.jpg Click to see img130c.jpg
Click to see img220c.jpg

Pterotocrinus depressus Lyon and Casseday, 1860
Click to see img118c.jpg Click to see img119c.jpg Click to see img120c.jpg Click to see img121c.jpg
Click to see img122c.jpg Click to see img123c.jpg Click to see img124c.jpg Click to see img125c.jpg

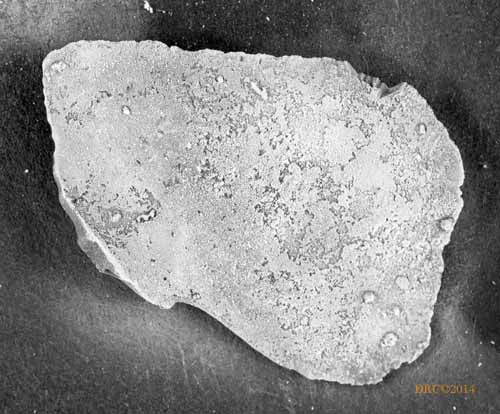

Click to see img126c.jpg Click to see img127c.jpg Click to see img128c.jpg Click to see img129c.jpg
Click to see img207c.jpg Click to see img208c.jpg

Genus Talarocrinus Wachsmuth and Springer, 1881

Talarocrinus decornis Wachsmuth and Springer, 1897


Subfamily Dichocrininae Miller, 1889

Genus Hyrtanecrinus Broadhead and Strimple, 1980


Hyrtanecrinus pentalobus (Casseday and Lyon, 1862)
Click to see img131c.jpg Click to see img133c.jpg Click to see img132c.jpg

Genus Strimplecrinus Broadhead, 1981

Strimplecrinus superstes (Wachsmuth and Springer, 1897)
Click to see img231Cc.jpg

Subfamily Camptocrininae Broadhead, 1981

Genus Camptocrinus Wachsmuth and Springer, 1897


Camptocrinus cirrifer (Wachsmuth and Springer, 1897)
Click to see img231Ac.jpg Click to see img231Bc.jpg Click to see img231Dc.jpg
Click to see img134c.jpg Click to see img135c.jpg

Family Acrocrinidae Wachsmuth and Springer, 1885

Subfamily Acrocrininae Wachsmuth and Springer, 1885

Genus Acrocrinus Yandell, 1855


Acrocrinus shumardi Yandell, 1855
Click to see img136c.jpg Click to see img137c.jpg Click to see img138c.jpg

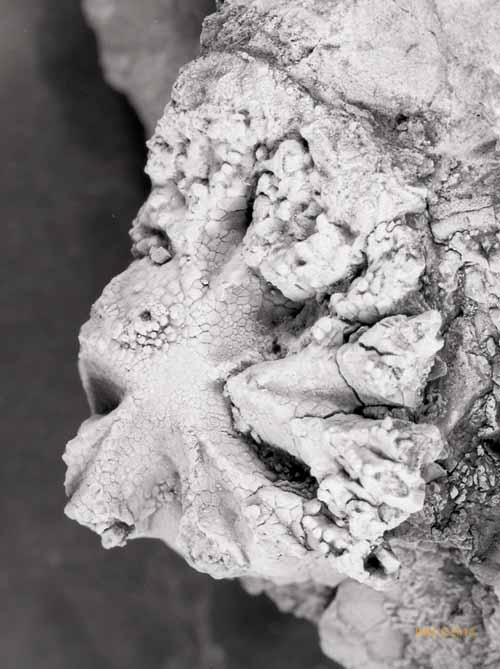

Click to see img140c.jpg Click to see img141c.jpg Click to see img142c.jpg Click to see img139c.jpg


Subclass Inadunata Wachsmuth and Springer, 1885

Order Disparida Moore and Laudon, 1943
none were found



Order Cladida Moore and Laudon, 1943

Suborder Poteriocrinitina Jaeckel, 1918

Superfamily Zeacrinitacea Bassler and Moodey, 1943

Family Zeacrinitidae Moore and Laudon, 1943

Genus Zeacrinites Troost, 1858


Zeacrinites wortheni (Hall, 1858)

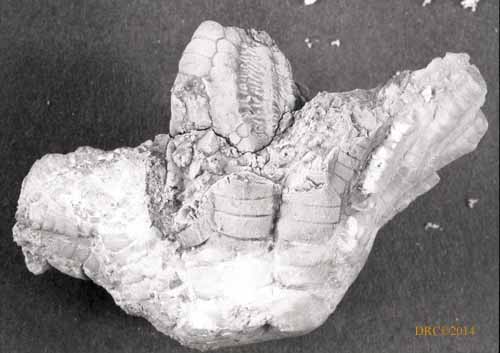

Click to see img001c.jpg Click to see img002c.jpg Click to see img003c.jpg
Click to see img197c.jpg Click to see img198c.jpg Click to see img199c.jpg

Genus Bicidiocrinus Strimple, 1975

Bicidiocrinus wetherbyi (Wachsmuth and Springer, 1886)
Click to see img004c.jpg Click to see img005c.jpg Click to see img215c.jpg Click to see img216c.jpg

Genus Tholocrinus Kirk, 1939

Tholocrinus spinosus (Wood, 1909)

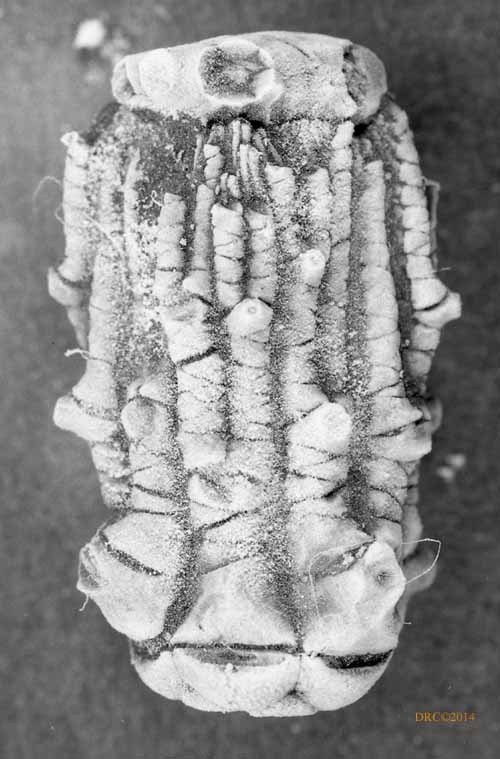

Click to see img006c.jpg Click to see img007c.jpg Click to see img008c.jpg

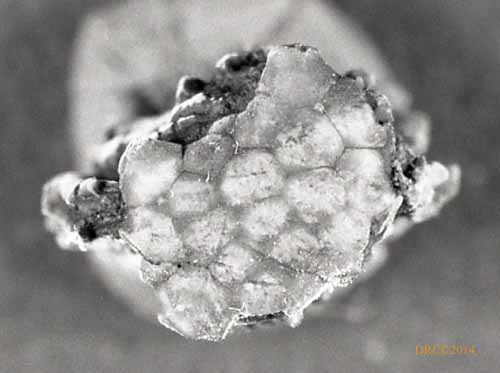

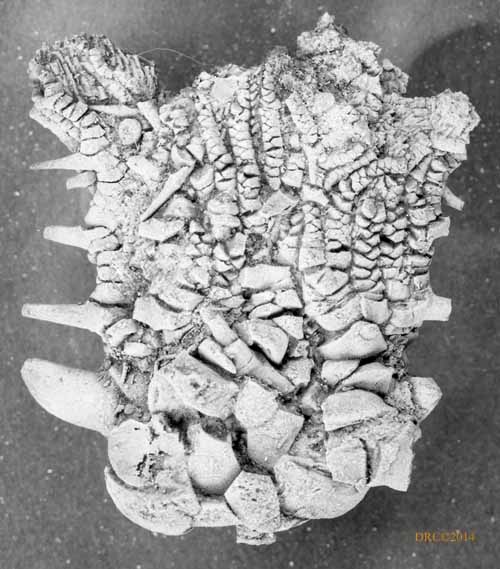

Click to see img009c.jpg Click to see img010c.jpg Click to see img011c.jpg Click to see img227Ac.jpg

Genus Linocrinus Kirk, 1938

Linocrinus laurelensis Chesnut and Ettensohn, 1988

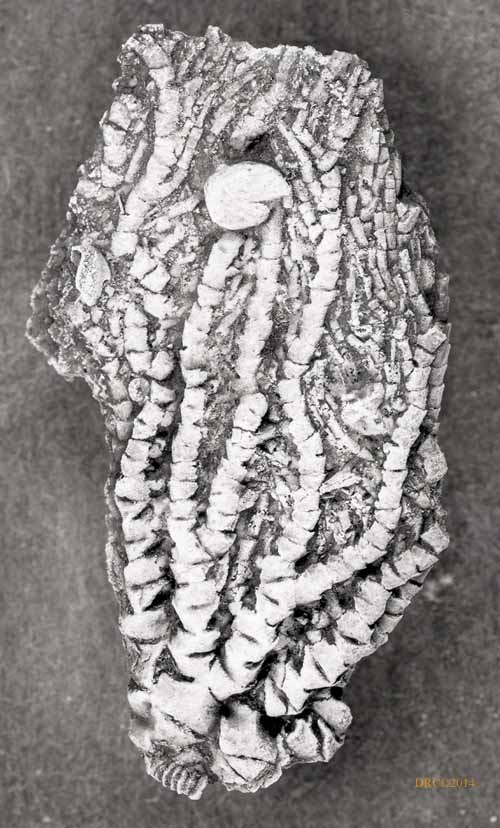

Click to see img012c.jpg Click to see img013c.jpg Click to see img020c.jpg Click to see img021c.jpg
Click to see img014c.jpg Click to see img015c.jpg Click to see img016c.jpg Click to see img019c.jpg

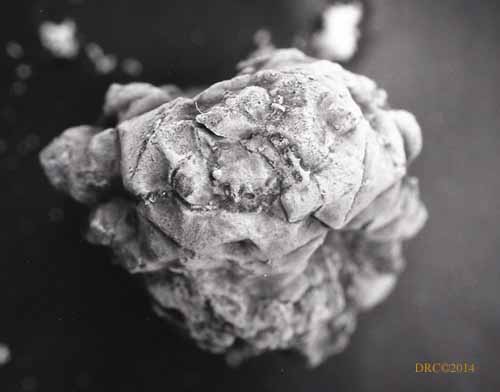

Click to see img017c.jpg Click to see img018c.jpg

Superfamily Pirasocrinacea Moore and Laudon, 1943

Family Pirasocrinidae Moore and Laudon, 1943

Genus Dasciocrinus Kirk, 1939


Dasciocrinus florialis (Yandell and Shumard, 1847)

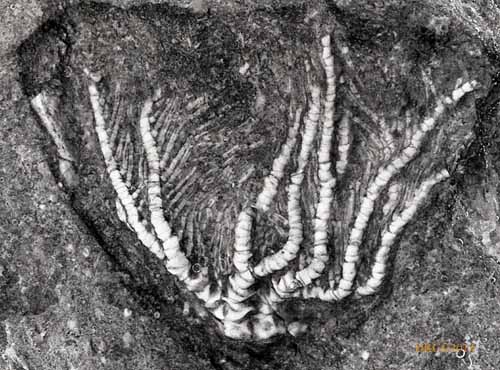

Click to see img022c.jpg Click to see img023c.jpg Click to see img024c.jpg Click to see img025c.jpg
Click to see img028c.jpg

Superfamily Texacrinacea Strimple, 1961

Family Cymbiocrinidae Strimple and Watkins, 1969

Genus Cymbiocrinus Kirk, 1944


Cymbiocrinus grandis Kirk, 1944

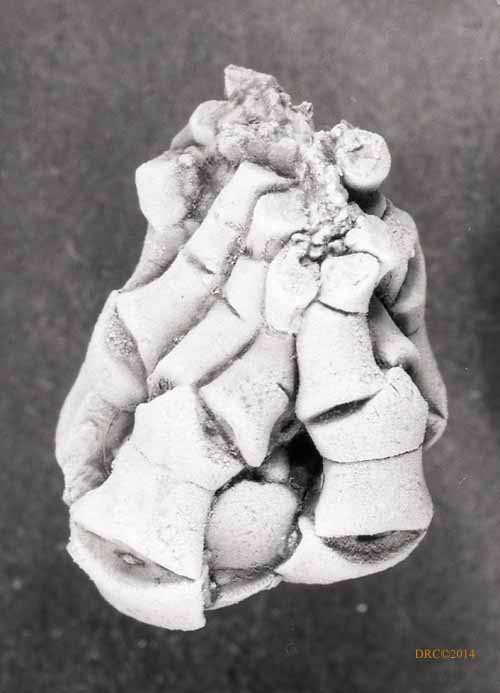

Click to see img026c.jpg Click to see img027c.jpg Click to see img030c.jpg Click to see img031c.jpg
Click to see img029c.jpg Click to see img032c.jpg

Genus Aenigmocrinus Strimple, 1973

Aenigmocrinus anomalos (Wetherby, 1880)
Click to see img033c.jpg Click to see img034c.jpg

Superfamily Scytalocrinacea Moore and Laudon, 1943

Family Scytalocrinidae Moore and Laudon, 1943

Genus Phacelocrinus Kirk, 1940


Phacelocrinus longidactylus (McChesney, 1860)

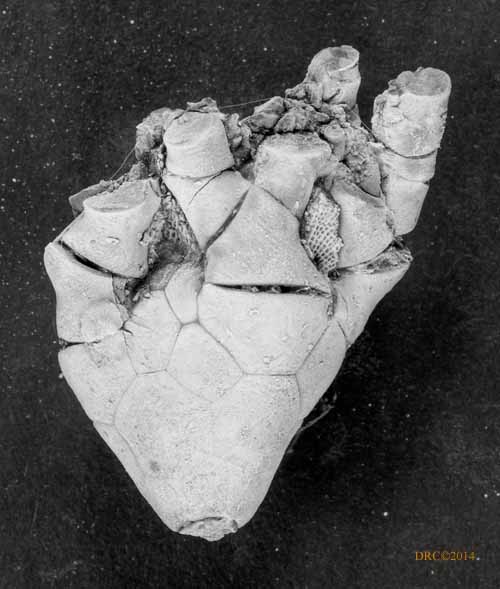

Click to see img038c.jpg Click to see img035c.jpg Click to see img036c.jpg Click to see img037c.jpg
Click to see img228Ac.jpg

Phacelocrinus bisselli (Worthen, 1873)


Genus Pulaskicrinus Chesnut and Ettensohn, 1988

Pulaskicrinus campanulus (Horowitz, 1965)

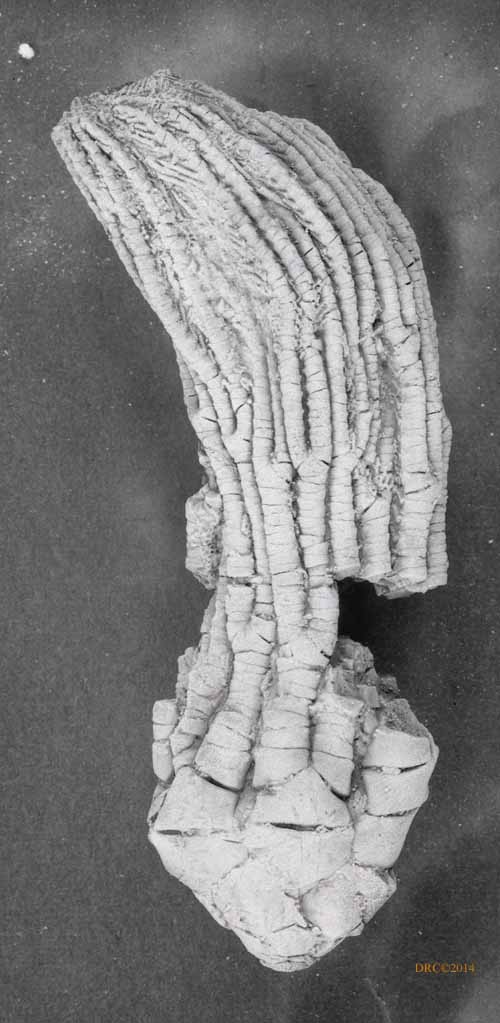

Click to see img039c.jpg Click to see img040c.jpg Click to see img041c.jpg Click to see img042c.jpg
Click to see img043c.jpg Click to see img044c.jpg Click to see img045c.jpg

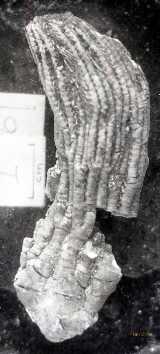

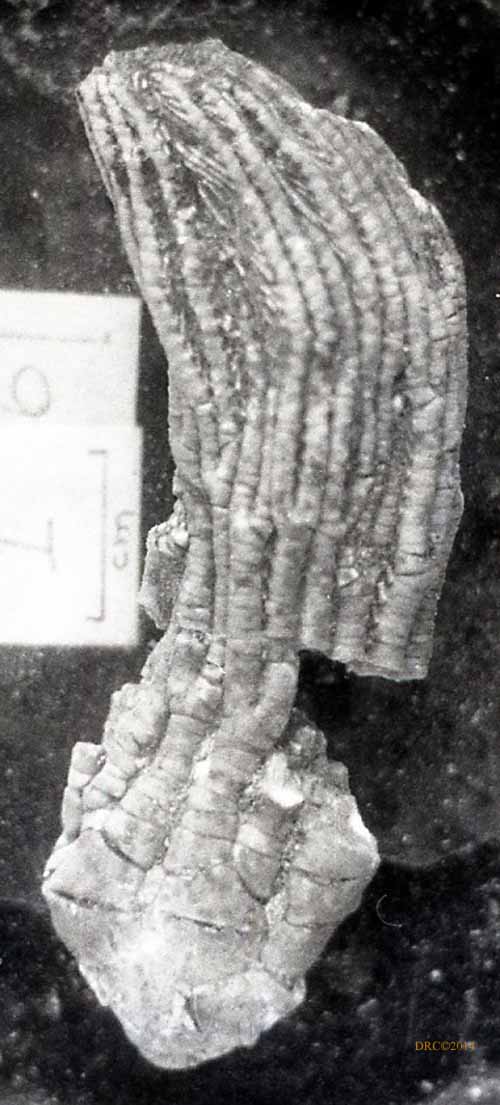

Click to see img181c.jpg Click to see img182c.jpg Click to see img225c.jpg Click to see img226c.jpg

Genus Wetherbyocrinus Chesnut and Ettensohn, 1988

Wetherbyocrinus pulaskiensis (Miller and Gurley, 1896)

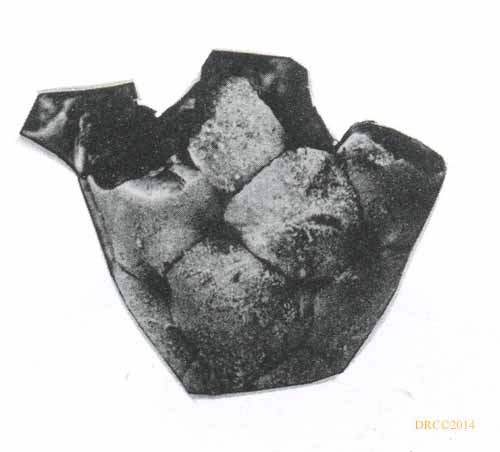

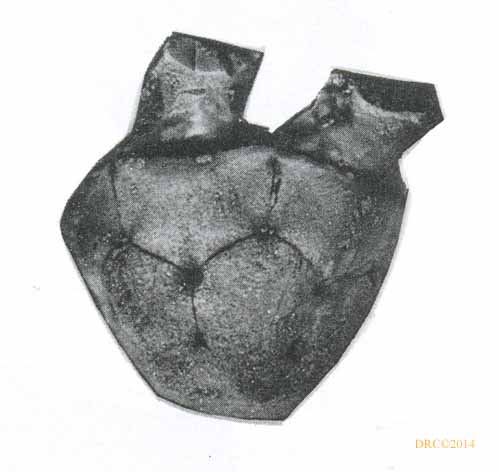

Click to see img229Ac.jpg Click to see img229Bc.jpg

Family Blothrocrinidae Moore and Laudon, 1943

Genus Culmicrinus Jaeckel, 1918


Culmicrinus vagulus (Miller and Gurley, 1895)

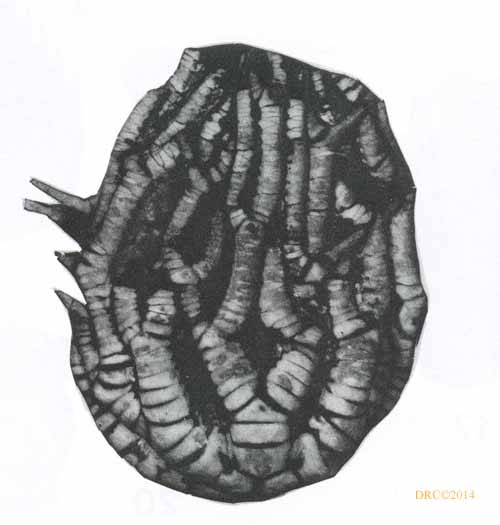

Click to see img229Cc.jpg Click to see img229Gc.jpg Click to see img229Hc.jpg

Family Aphelecrinidae Strimple, 1967

Genus Aphelecrinus Kirk, 1944


Aphelecrinus randolphensis (Worthen, 1873)
  Click to see img049c.jpg Click to see img050c.jpg Click to see img051c.jpg Click to see img052c.jpg

Superfamily Lophocrinacea Bather, 1899

Family Stellarocrinidae Strimple, 1961

Genus Rhopocrinus Kirk, 1942


Rhopocrinus spinosus Kirk, 1942

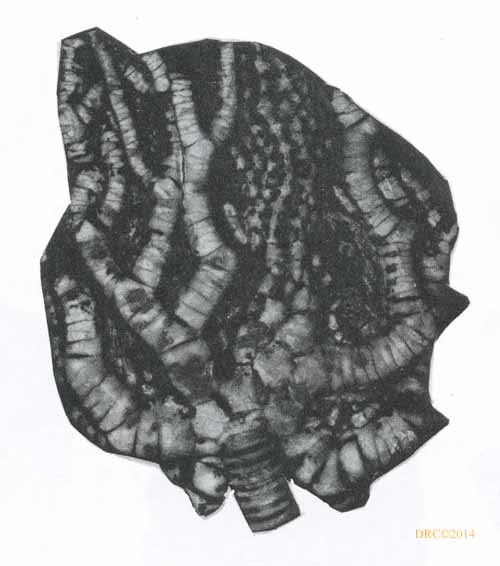

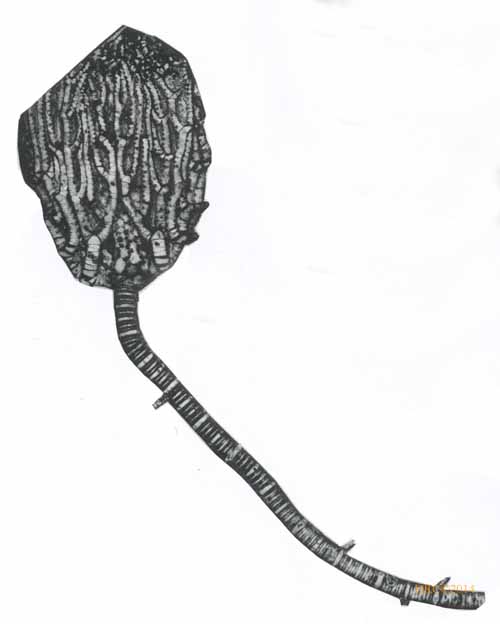

Click to see img229Dc.jpg Click to see img229Ec.jpg Click to see img229Fc.jpg

Superfamily Agassizocrinacea Miller, 1889

Family Ampelocrindae Kirk, 1942

Genus Ampelocrinus Kirk, 1942


Ampelocrinus kaskaskiensis (Worthe, 1882)
Click to see img230Ac.jpg Click to see img046c.jpg Click to see img047c.jpg Click to see img048c.jpg
Click to see img224c.jpg

Family Agassizocrinidae Miller, 1889

Genus Anartiocrinus Kirk, 1940


Anartiocrinus lyoni Kirk, 1940
Click to see img053c.jpg Click to see img054c.jpg Click to see img055c.jpg Click to see img056c.jpg

Genus Agassizocrinus Owen and Shumard, 1852

Agassizocrinus conicus Owen and Shumard, 1852
Click to see img057c.jpg Click to see img058c.jpg Click to see img059c.jpg Click to see img060c.jpg
Click to see img218c.jpg Click to see img219c.jpg

Agassizocrinus cf. A. dactyliformis Shumard, 1853

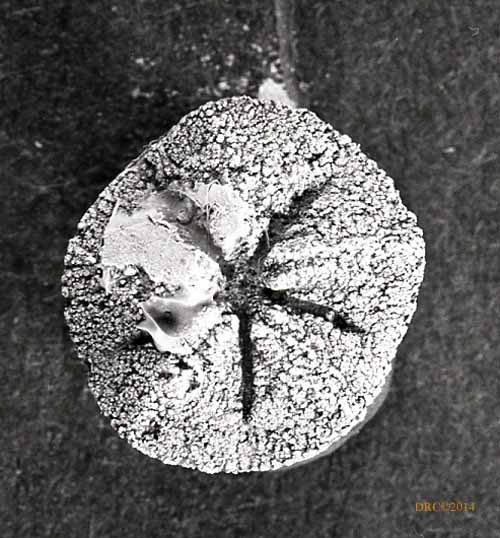

Click to see img061c.jpg Click to see img062c.jpg

Superfamily Decadocrinacea Bather, 1890

Family Decadocrinidae Bather, 1890

Genus Ramulocrinus Laudon, Parks and Spreng, 1952


Ramulocrinus milleri (Wetherby, 1881)
Click to see img063c.jpg Click to see img064c.jpg Click to see img065c.jpg Click to see img066c.jpg

Superfamily Cromyocrinacea Bather, 1890

Family Phanocrinidae Knapp, 1969

Genus Phanocrinus Kirk, 1937


Phanocrinus maniformis (Yandell and Shumard, 1847)

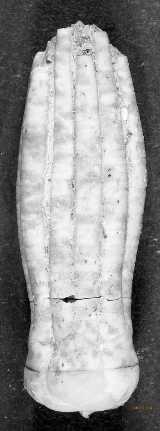

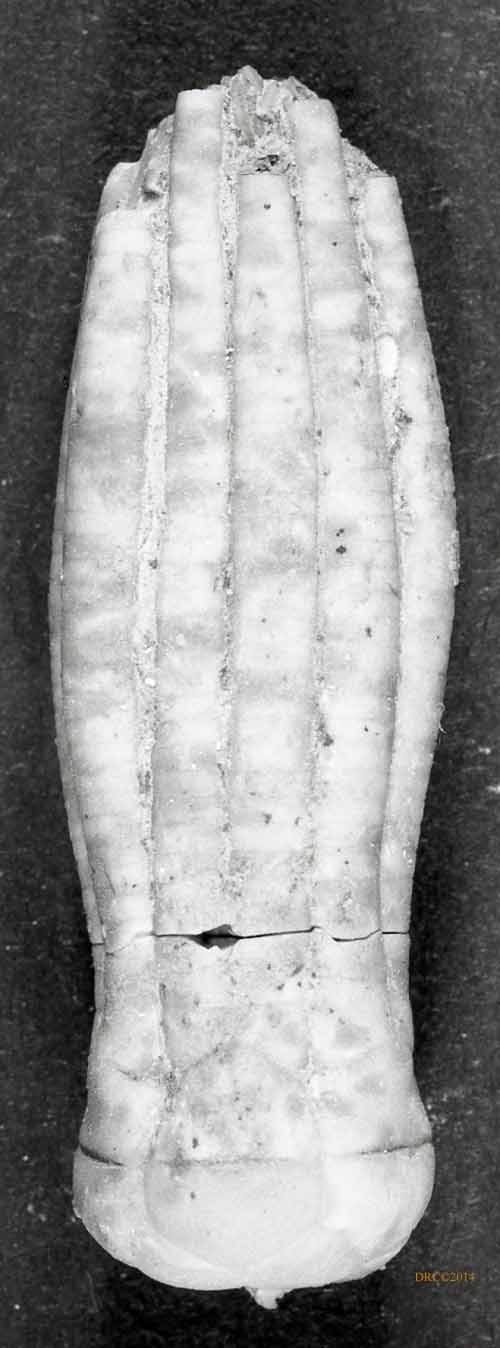

Click to see img067c.jpg Click to see img068c.jpg Click to see img069c.jpg Click to see img070c.jpg
Click to see img071c.jpg Click to see img072c.jpg Click to see img074c.jpg Click to see img075c.jpg
Click to see img073c.jpg Click to see img076c.jpg Click to see img196c.jpg

Phanocrinus parvaramus Sutton and Winkler, 1940
Click to see img077c.jpg Click to see img078c.jpg Click to see img079c.jpg

Genus Pentaramicrinus Sutton and Winkler, 1940

Pentaramicrinus gracilis (Wetherby, 1880)
Click to see img080c.jpg Click to see img081c.jpg

Family Eupachycrinidae Miller, 1889

Genus Eupachycrinus Meek annd Worthen, 1865


Eupachycrinus boydii Meek and Worthen, 1870

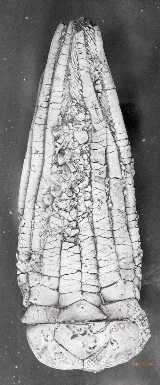

Click to see img082c.jpg Click to see img083c.jpg Click to see img084c.jpg Click to see img085c.jpg



Subclass Flexibilia Zittel, 1879

Order Taxocrinida Springer, 1913

Superfamily Taxocrinacea Angelin, 1878

Family Synerocrinidae Jaeckel, 1918

Genus Onychocrinus Lyon and Casseday, 1860

Onychocrinus pulaskiensis Miller and Gurley, 1895
Click to see img086c.jpg Click to see img087c.jpg Click to see img088c.jpg Click to see img089c.jpg

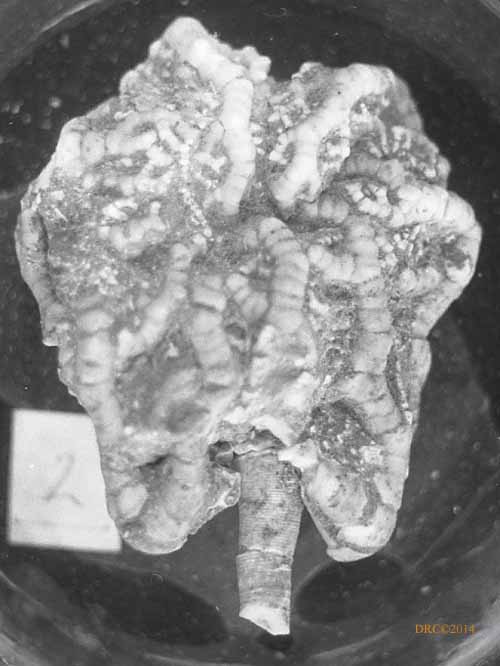

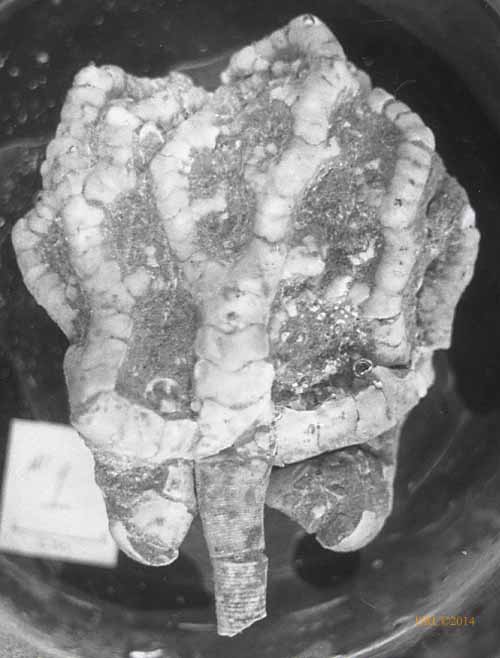

Click to see img090c.jpg Click to see img194c.jpg Click to see img195c.jpg

Family Taxocrinidae Angelin, 1878

Genus Taxocrinus Phillips in Morris, 1843

Taxocrinus whitfieldi (Hall, 1858)
Click to see img091c.jpg Click to see img092c.jpg Click to see img093c.jpg Click to see img094c.jpg
Click to see img200c.jpg



Class Echinoidea Leske, 1778

Subclass Perischoechinoidea M'Coy, 1849

Order Echinocystitoida Jackson, 1912

Family Lepidesthidae Jackson, 1896

Genus Lepidesthes Meek and Worthen, 1868


Lepidesthes formosa Miller, 1879

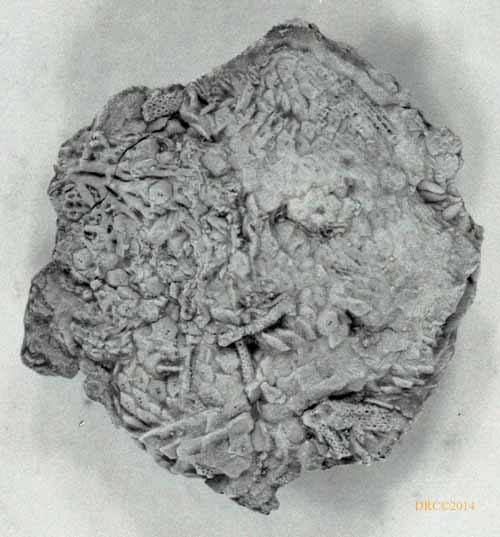

Click to see img179c.jpg Click to see img180c.jpg Click to see img237Ac.jpg

Order Palaechinoida Haeckel, 1866

Family Palaechinidae M'Coy, 1849

Genus Palaechinus M'Coy, 1844


Palaechinus jacksoni Chesnut and Ettensohn, 1988
Click to see img238Ac.jpg

Order Cidaroida Claus, 1880

Family Archaeocidaridae M'Coy, 1844

Genus Archaeocidaris M'Coy, 1844


Archaeocidaris hemispinifera Chesnut and Ettensohn, 1988

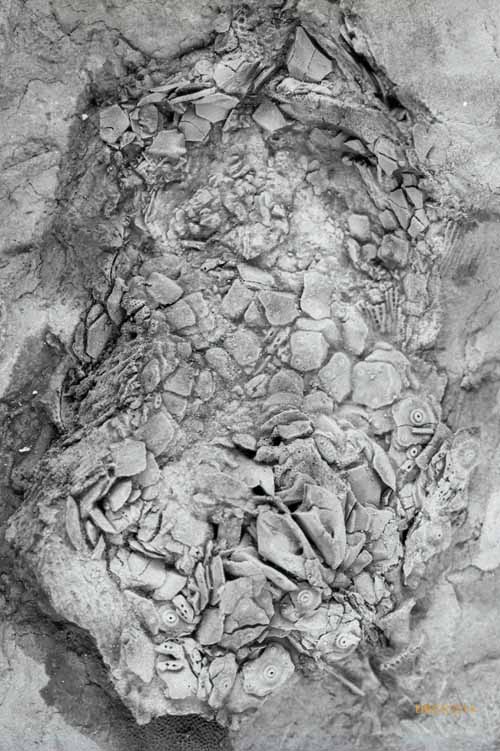

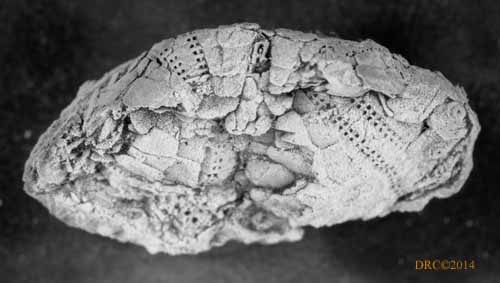

Click to see img172c.jpg Click to see img173c.jpg Click to see img174c.jpg Click to see img175c.jpg

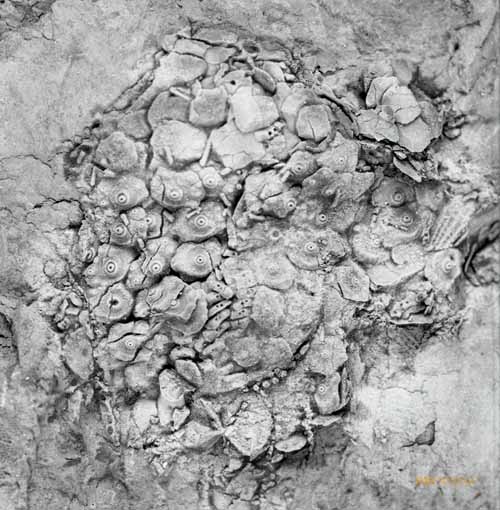

Click to see img176c.jpg Click to see img177c.jpg Click to see img178c.jpg Click to see img171c.jpg


Subphylum Asterozoa Zittel, 1895

Class Stelleroidea Lamarck, 1816

Subclass Ophiuroidea Gray, 1840

Order Phrynophiurida Matsumoto, 1915

Suborder Euryalina Lamarch, 1816

Family Onychasteridae Miller, 1889

Genus Onychaster Meek and Worthen, 1868


Onychaster strimplei Bjork, Goldbert, and Kesling, 1968
Click to see img181c.jpg Click to see img182c.jpg

Order Oegophiurida Matsumoto, 1915

Suborder Lysophiurina Gregory, 1896

?Family Encrinasteridae Schuchert, 1914


encrinasterid species


Subclass Asteroidea Blainville, 1830

Order Spinulosida Perrier, 1884

Suborder Eugnathina Spencer and Wright, 1966

Family Taeniactinidae Spencer, 1927

Genus Callyptactis Spencer, 1930


Calyptactis spenceri Chesnut and Ettensohn, 1988
Click to see img183c.jpg Click to see img184c.jpg Click to see img185c.jpg Click to see img186c.jpg
Click to see img187c.jpg Click to see img188c.jpg Click to see img239c.jpg
