17. Add the following command buttons to the Course Registration Form:

Save

Undo

Return to the Student Screen

18. Add the following command buttons to the Instructor Form:

Save

Undo

Return to the Instructor Screen

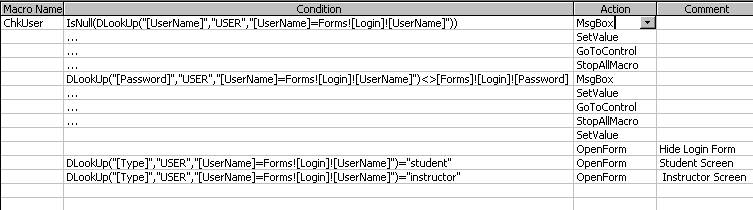

19. Create the following macro for the On Click property of the Enter button in the Login Screen: [AC 507-511]

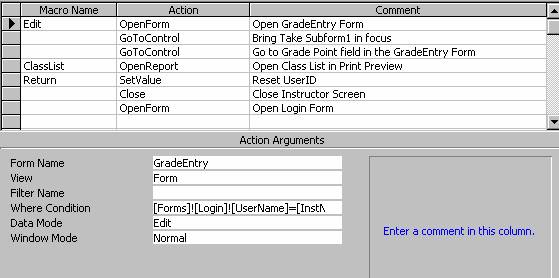

20. Create the following macro for the Instructor Screen:

21. Create a similar macro as above for the Student Screen

22. Create the following USER table:

USER(UserName, Password, Type)

Where UserName = Student# if Type=student

UserName = InstName if Type=instructor

23. Create the corresponding menu bars and tool bars for each of these screens: Login, Instructor, and Student

Login screen: Login & Quit

Instructor/Student screen: Data Entry, View Report, & Return

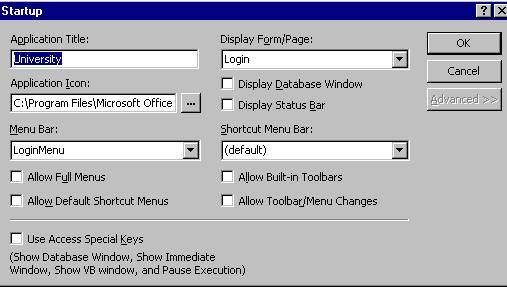

24. Change the Startup properties in the University database so that

Login screen will be opened automatically when the database opens:

25. Convert the Login macro to VBA code:

Tools à Macro à Convert Macros to Visual Basic

26. Change the converted VBA code such that any user is allowed only 3 trials in entering their password:

(1) Add the following declaration statement:

Dim User As String

(2) Replace the code for Password validation with the following:

User = DLookup("[Password]", "USER", "[UserName]=Forms![Login]![UserName]")

If ChkPwd(User) = 3 Then

Call FlagUser(Forms![login]![UserName])

Application.Quit

End If

(3) Type in the function ChkPwd:

Function ChkPwd(UserPD As String) As Integer

'To validate a user's password

Dim counter As Integer

Dim Pwd As String

counter = 1

Pwd = forms![Login]![Password]

Do While counter < 3

If Pwd <> UserPD Then

Pwd = InputBox("Invalid Password. Please reenter")

counter = counter + 1

Else

Exit Do

End If

Loop

ChkPwd = counter

End Function

27. Deactivate the user whenever his/her password has been invalidated:

(1) Type in the subroutine FlagUser

Sub FlagUser(ID As String)

'A Subroutine to deactive a user

Dim db As Database

Dim rec As DAO.Recordset

Dim criterion As String

Set db = CurrentDb()

Set rec = db.OpenRecordset("USER")

rec.Index = "PrimaryKey"

rec.Seek "=", ID

rec.Edit

rec("Type") = "deactivated"

rec.Update

rec.Close

End Sub

(2) Issue a message for a deactivated user:

User = DLookup("[Type]", "USER", "[UserName]=Forms![Login]![UserName]")

Select Case User

Case "student"

DoCmd.OpenForm "StudentSrn", acNormal, "", "", , acNormal

Case "instructor"

DoCmd.OpenForm "InsSrn", acNormal, "", "", acReadOnly, acNormal

Case "deactivated"

MsgBox "User Account is Deactivated. Please see Administrator"

Application.Quit

End Select
