Access object
environment
|
Access Data Project (ADP) |
Contains forms, reports, macros, modules, and data access pages which are connected to the back-end database that contains the tables and queries |

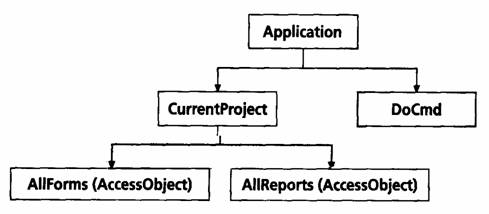

Application object
|
Open a database |
OpenCurrentDatabase method e.g., DIM AccessApp AS Access.Application SET AccessApp = NEW Access.Application CONST path = “d:\mgt695\” WITH AccessApp .OpenCurrentDatabase path & “622.mdb” .DoCmd.OpenReport “Grade” END WITH |
|
Close a currently opened database |
Access.Application.CloseCurrentDatabase |
|
Open a form |
DoCmd.OpenForm form_name |
The AllForms collection of the CurrentProject object comprises all the saved forms.
The Forms collection
comprises only the forms currently running in memory
Access Data Environment
|
MSDE |
MicroSoft Database Engine |
Contains tables and queries Replaced by SQL Server Desktop Engine |
|
|
ActiveX Data Objects |
New data access technology: non-hierarchical |
|
DAO |
Data Access Objects |
Pre-2000 data access technology |

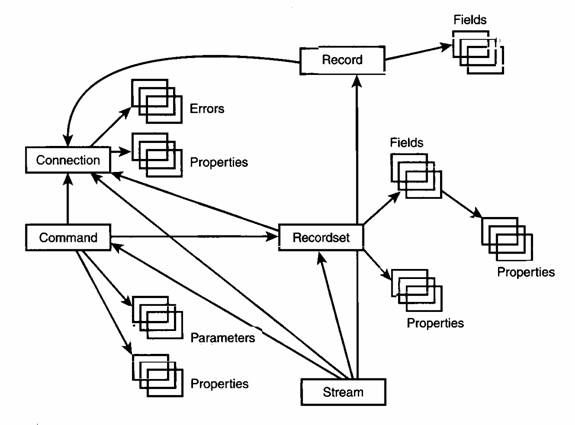

Connection object
|
Connection object |
Defines a session for a user for a data source |
|
Declaring a connection object |
DIM c_object_name AS ADODB.Connection |
|
Initiate a new connection object |
SET c_object_name = NEW ADODB.Connection |
|
Open the connection |
Open method c_object_name.OPEN connection_string |
|
Connection string |
“PROVIDER = Microsoft.Jet.OLEDB.4.0;” “DATA SOURCE =” |
|
Close the connection |
Close method c_object_name.CLOSE |
|
Destroy the connection object |
Set c_object_name = Nothing |
Recordset object
|
Recordset object |
Defines records as a group |
|
Declaring a recordset object |
DIM r_object_name AS ADODB.Recordset |
|
Initiate a new recordset object |
SET r_object_name = NEW ADODB.Recordset |
|
Point the recordset object at a set of records |
r_object_name.OPEN data_source, CurrentProject.Connection |
|
Data source |
Table name, SQL statement, … |
|
Close the recordset |
Close method r_object_name.CLOSE |
|
Destroy the recordset object |
Set r_object_name = Nothing |
Fields collection
|
Count property |
Returns the number of fields in the recordset r_object_name.FIELDS.COUNT |
|
EOF property |
Returns true if the current position is at EOF r_object_name.EOF |
|
Retrieve data based on the field name |
r_object_name!field_name or r_object_name(“field_name”) |
|
MoveNext method |
Moves to the next record in the recordset r_object_name.MoveNext |
|
AddNew method |
Adds a new record |
|
Update |
Modifies data in an existing record |
|
Delete |
Deletes a record |

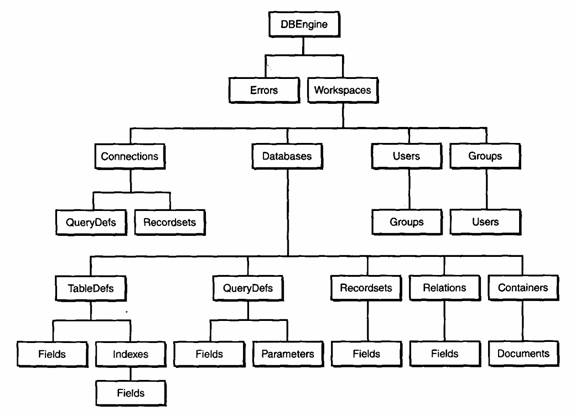

DAO (Data Access
Objects) Model
