Bretagne Nitrogen Plant, Big Andy Ridge


Return to KSPG 2001 Field Trip home page
Click to see n2plant01.jpg
Full Size Image

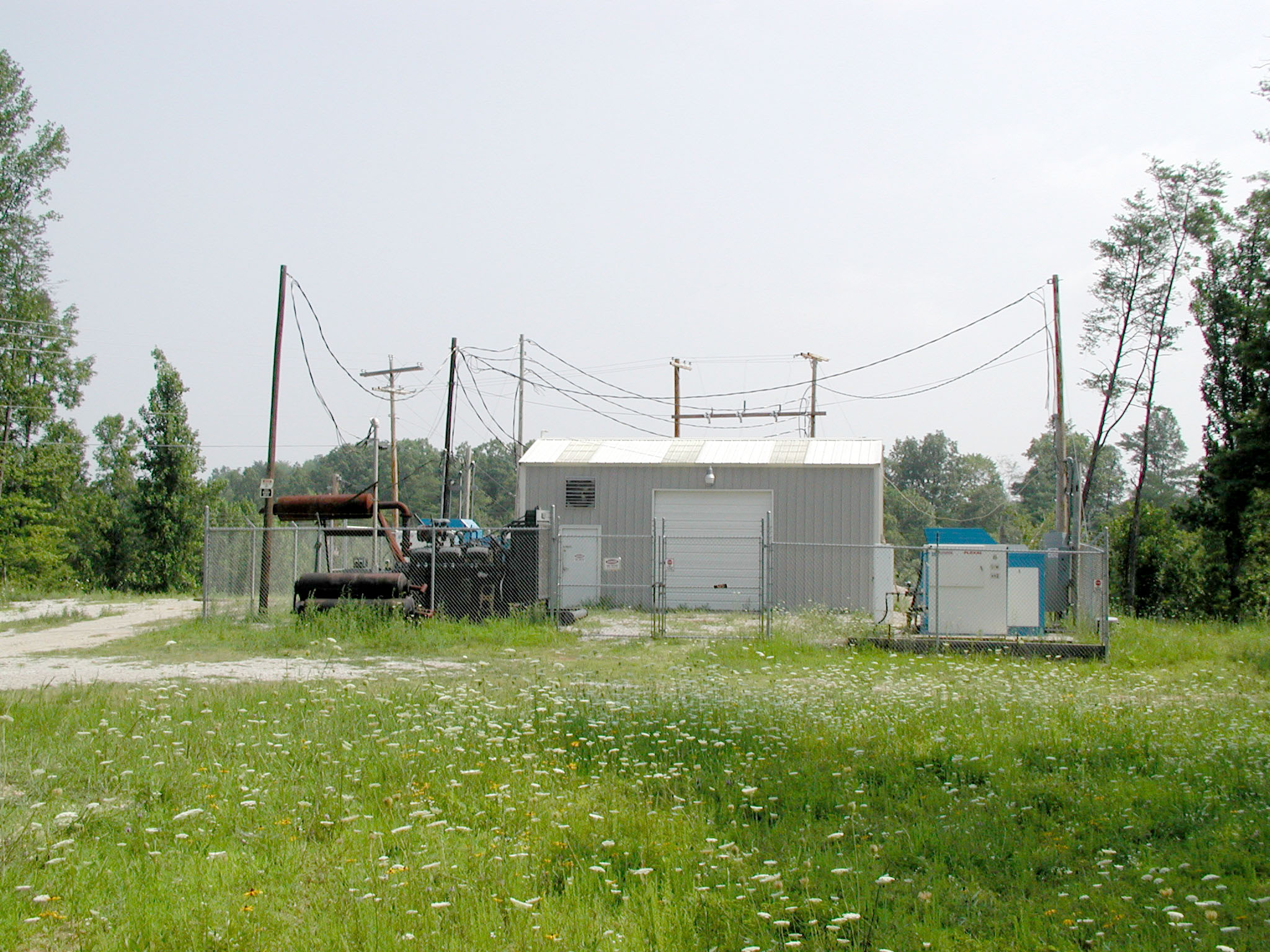

Atmospheric nitrogen recovery plant operated by Bretagne on Big Andy Ridge
Click to see n2plant02.jpg
Full Size Image
Tank battery on site of nitrogen plant
Click to see n2plant03.jpg
Full Size Image

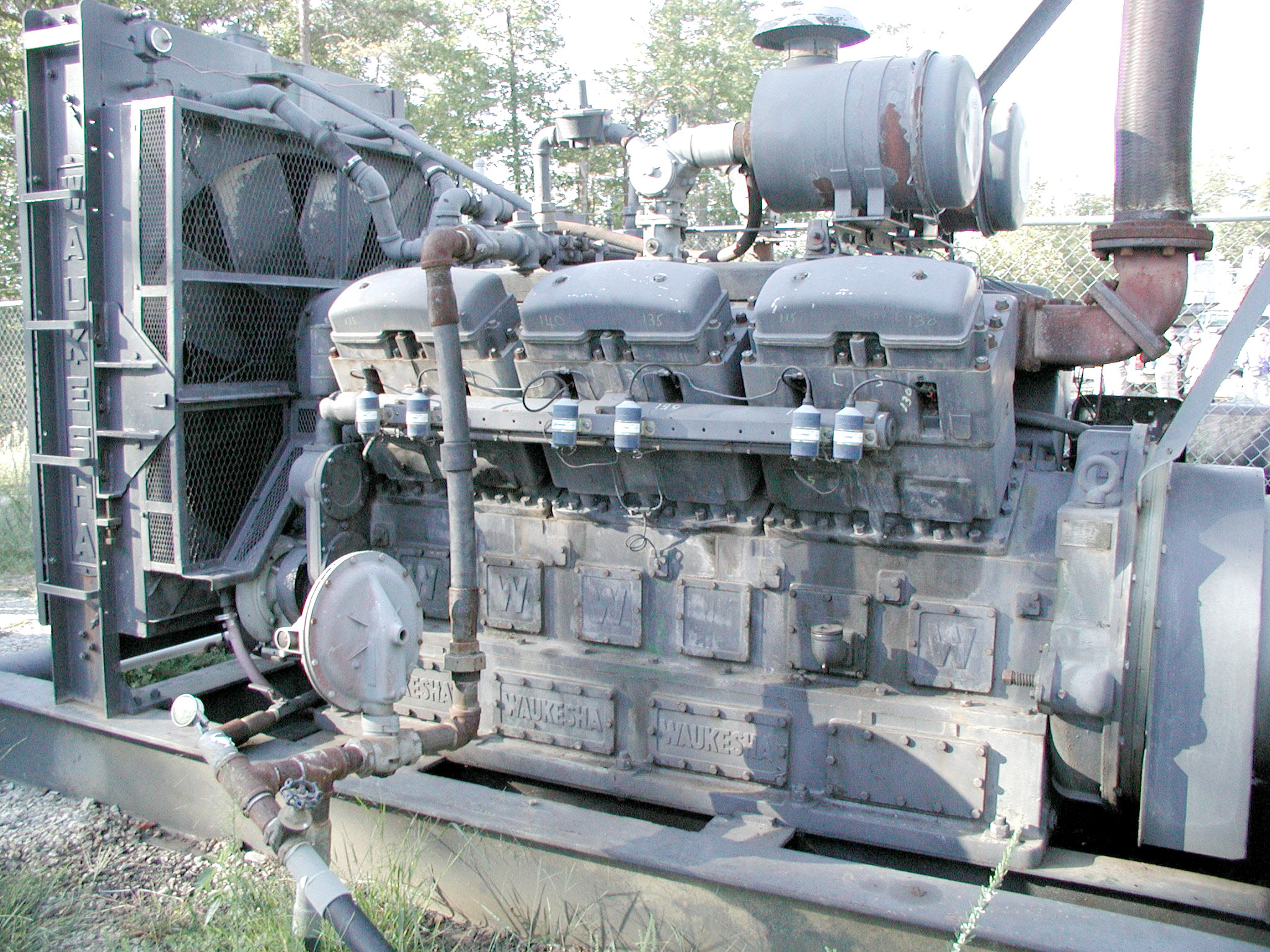

Waukesha 12-cylinder natural gas-powered generator for supplying emergency power at nitrogen plant
Click to see n2plant04.jpg
Full Size Image

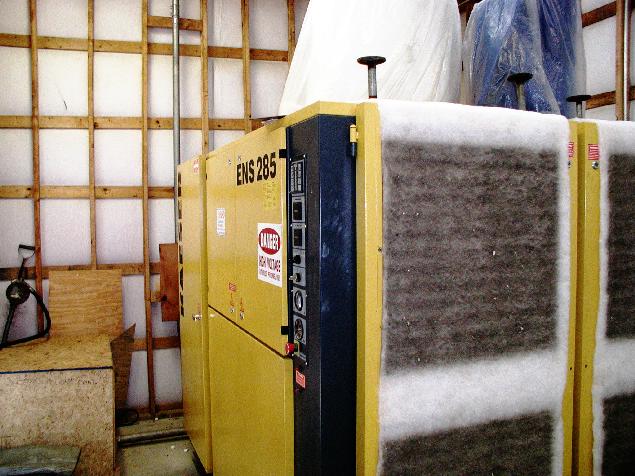

Compressor brings air to about 180 psi
Click to see n2plant05.jpg
Full Size Image

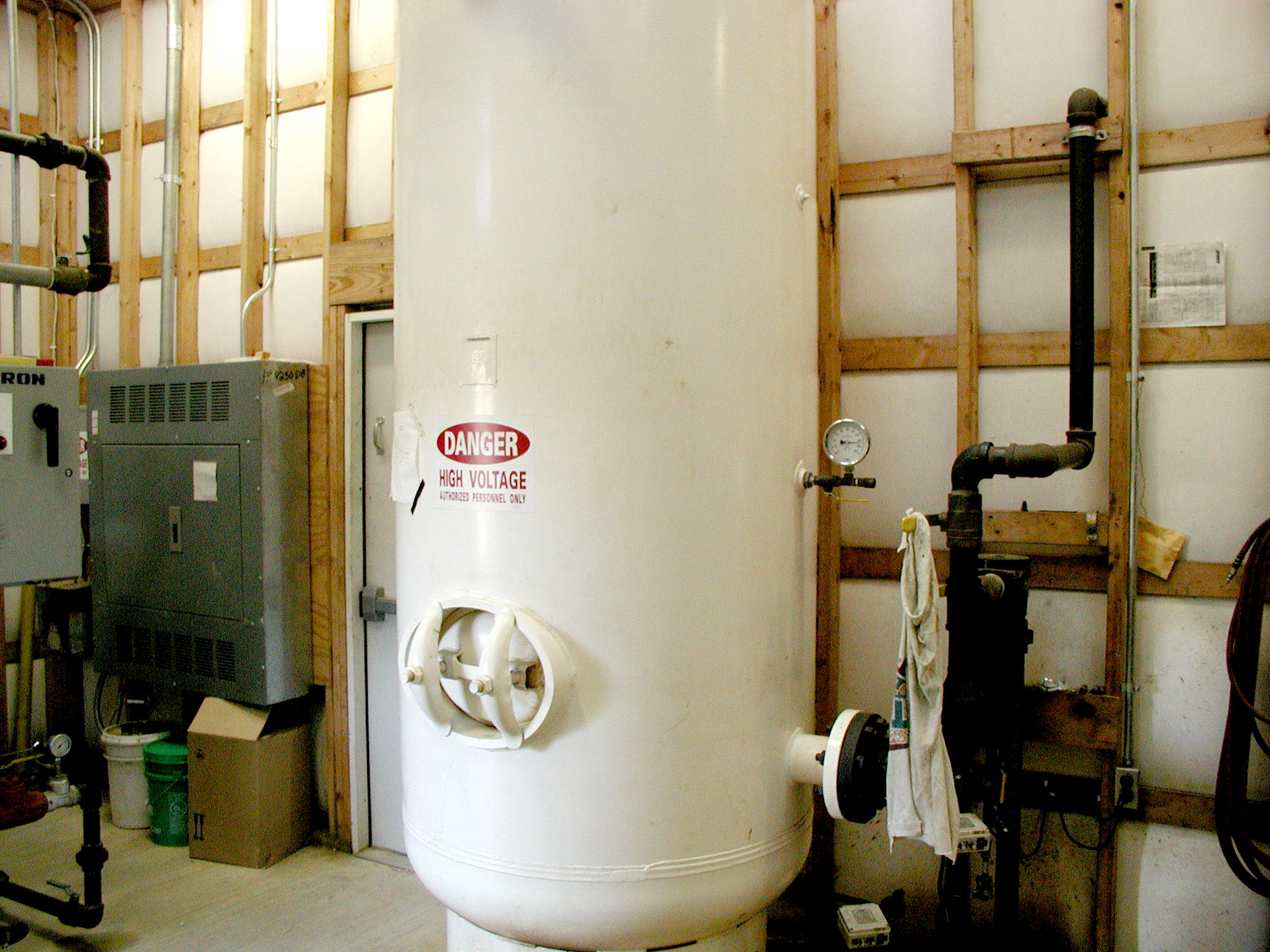

Volume tank stores air after compression
Click to see n2plant06.jpg
Full Size Image

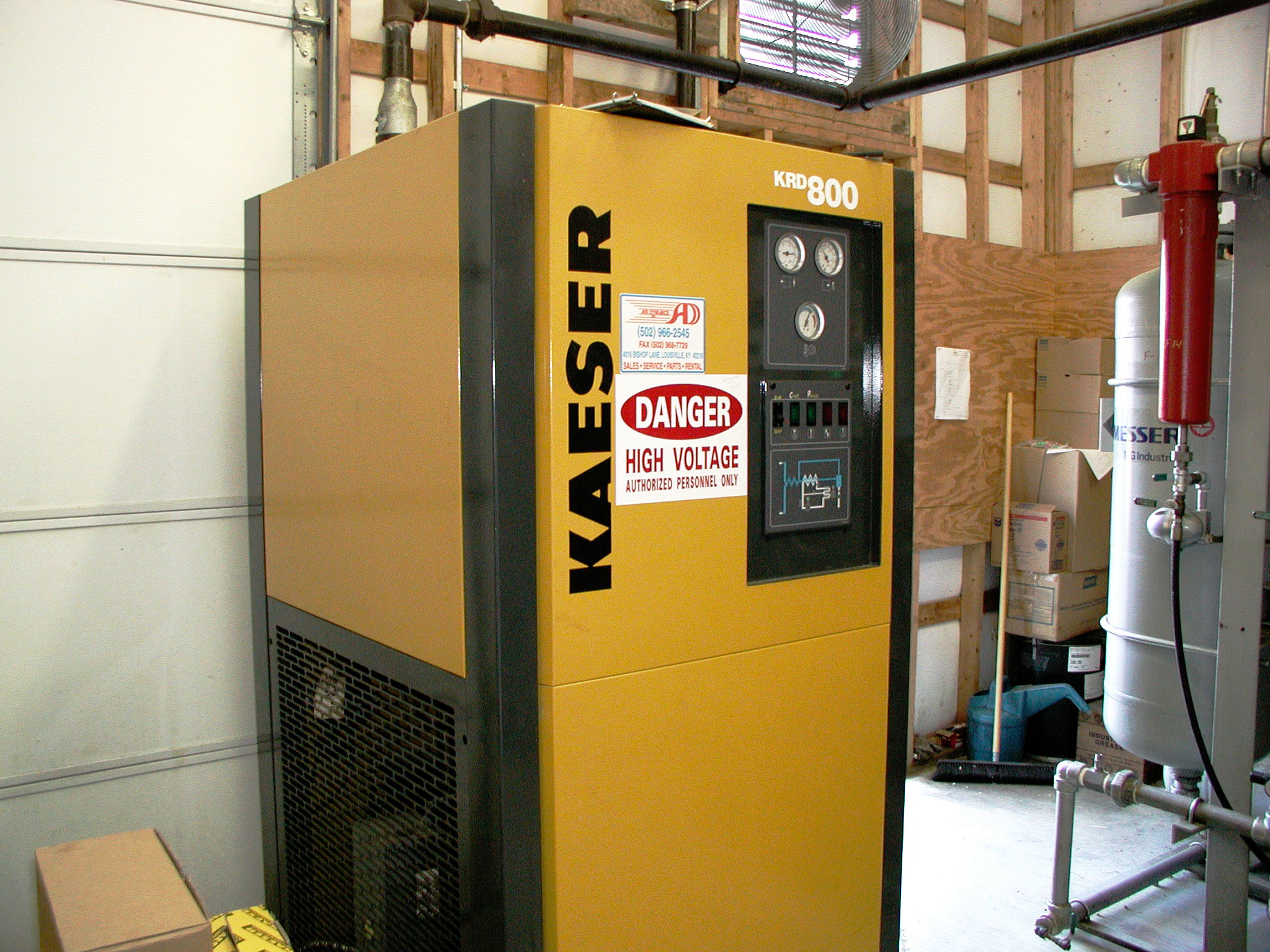

From the volume tank, the compressed air is dried
Click to see n2plant07.jpg
Full Size Image
After drying, the air is heated and passed through a membrane system (horizontal units in background) to concentrate the nitrogen.
Click to see n2plant08.jpg
Full Size Image
Meter charts are used during the injection phase to monitor how much nitrogen is being routed to various leases.
Click to see n2plant09.jpg
Full Size Image

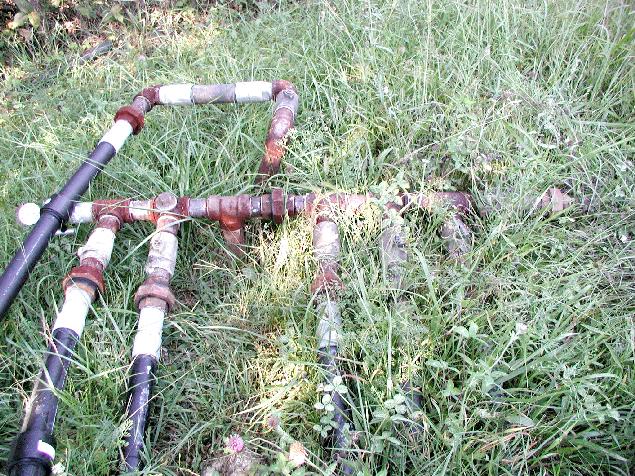

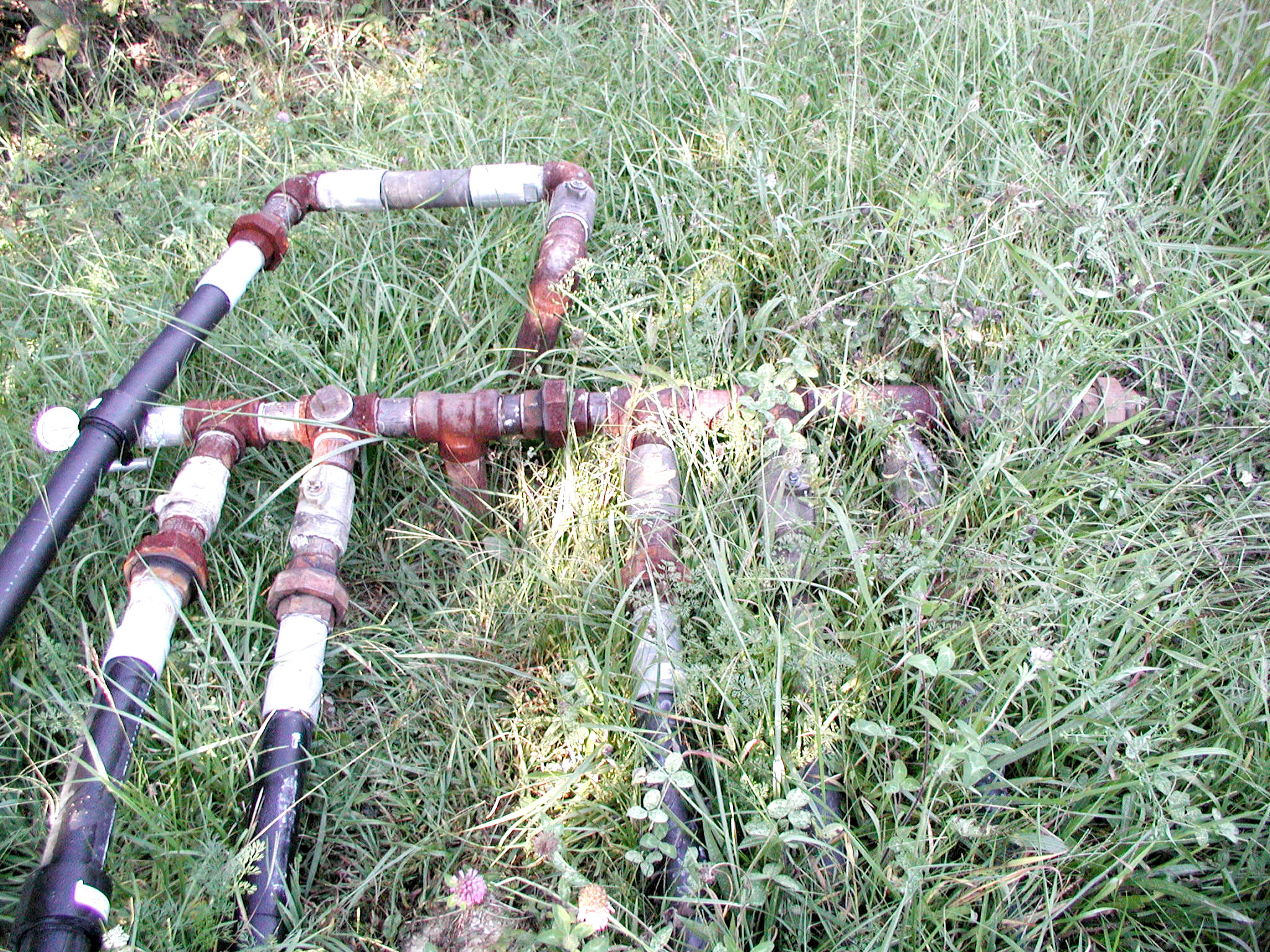

Manifold is used to control which lease is currently undergoing nitrogen injection.
